alarms, fans, cargo carrying capacity, misc, questions
Alarms and Warnings
Propane and CO alarm MP73
The detector runs on 12 volt power, and is operational whenever the battery disconnect switch is on. There is no
separate switch for the detector. There is an indicator light on the detector so that you can tell whether it's working
or not. For this reason, whenever the vehicle is occupied the battery disconnect switch should be on the "on"
The detector may chirp if the coach batteries are running low. MP73
The carbon monoxide and propane leak detector is located on the passenger side, near the floor under the TV.
These detectors have a service life, beyond which point they need to be replaced. The detector requires no
maintenance other than periodic replacement MP73
Activation of this device indicates the presence of CO or propane gas, which can KILL YOU.

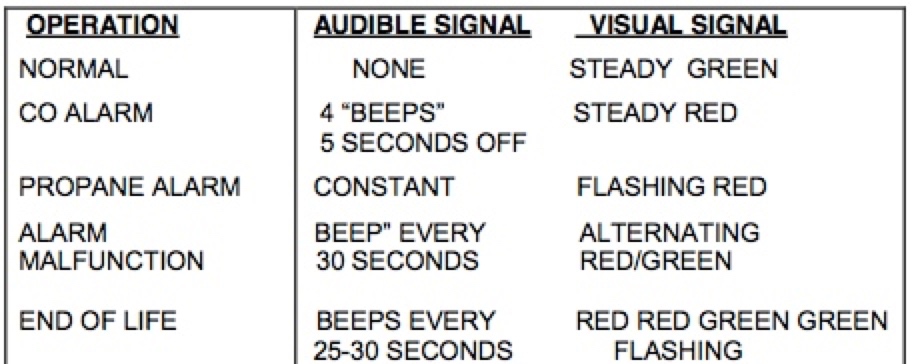

➜ If the signal sounds (4 BEEPS AND FLASHING RO SOLID RED LIGHT)
Operate the Test/Mute button
Call your emergency local service. Manual

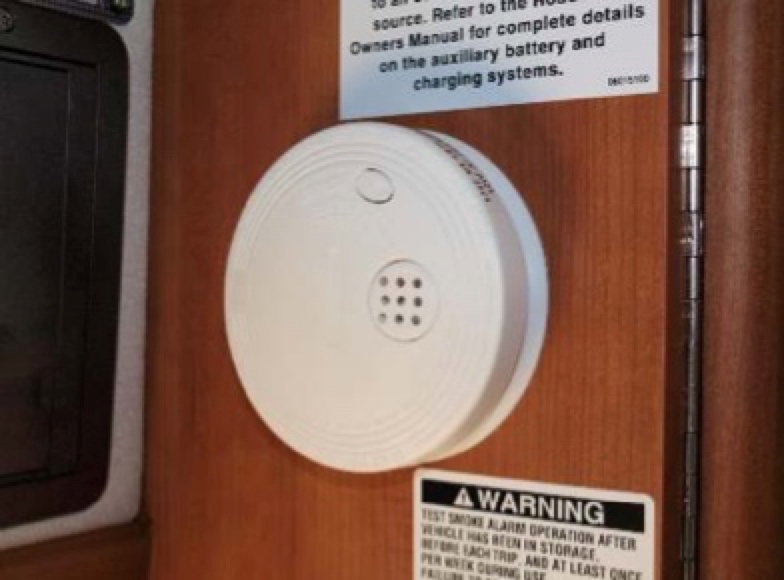

Smoke Alarm MP72
The smoke alarm is located to the right of the Monitor Panel. It requires a commonly available 9 volt battery and
periodic replacement of both the battery and the unit as a whole. Please refer to the Owner's Manual for the unit
in your vehicle.
The smoke alarm uses a 9 Volt carbon-zinc battery. The battery should last for at least one year under normal
operating Conditions. The smoke alarm has a low battery indicator, an audible "beep." It will operate at 30-40
second intervals for a minimum of 7 days. When this indication occurs, replace the battery with an Alkaline type
(Eveready Energizer //522, Duracell IIMN1604), Carbon-Zinc type (Gold Peak it1604P, Eveready I/216) from your
local retailer. Manual
Fire Extinguisher MP72

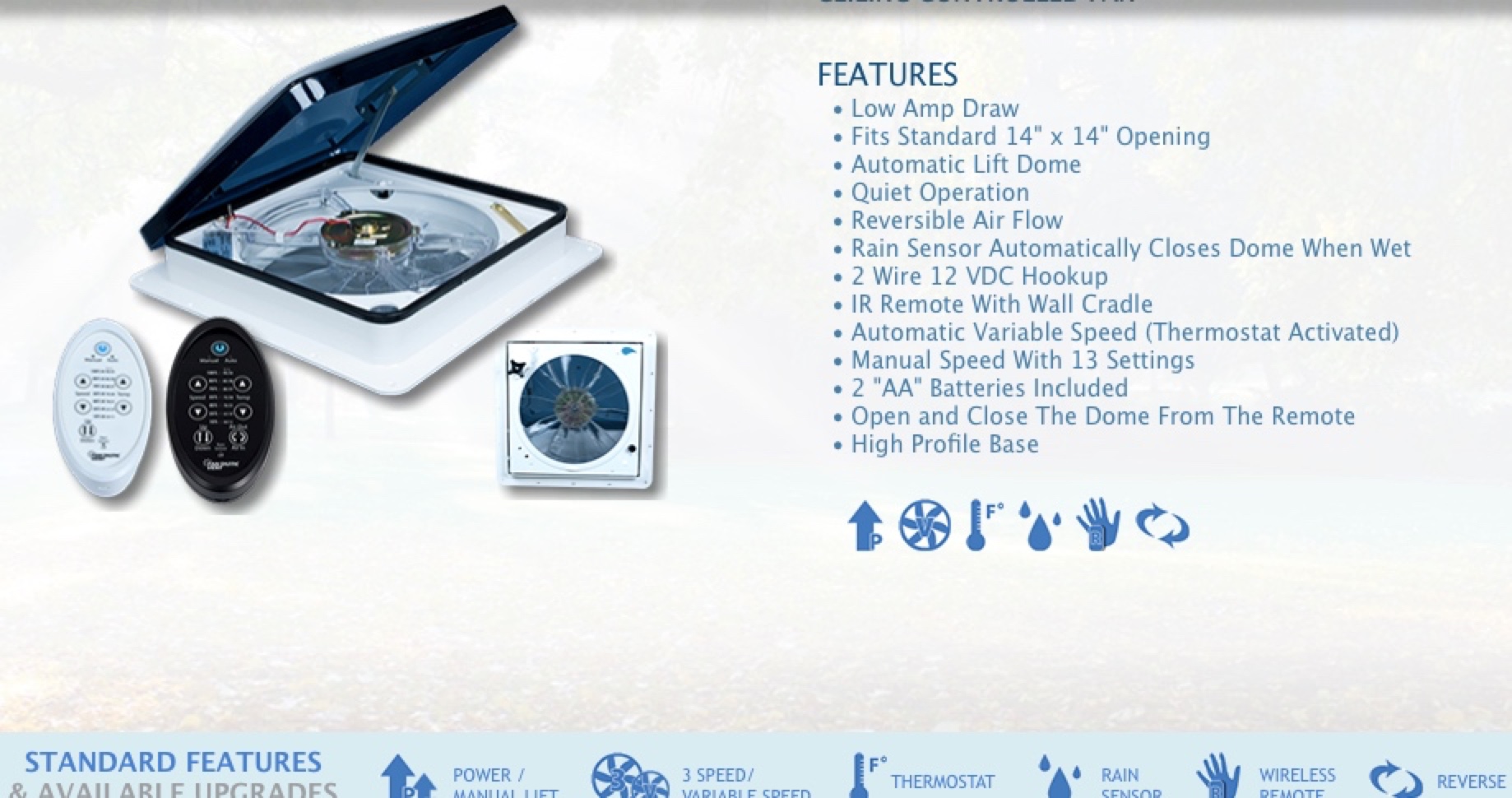

Fantastic Vent Fan Model 7350 remote control fan with wall cradle
Turn the fan off and close the cover completely before driving. The cover will rattle and might be damaged by
wind pressure if you drive with it open. MP20
Close all vents when using your Fan-Tastic Vents. Slightly open windows on shaded side of coach afford the
most comfortable ambient air, even on hot days. Remember, you direct the airflow by opening a window.
Always try to position yourself between an open window and the fan for greatest airflow comfort. Any installation
or operating problems call Fan-Tastic Vent toll free immediately, (800) Manual
Bathroom Fan - The 190 has an exhaust fan in the bathroom. Push up on the white bar to open the vent, and, and turn on
the fan by pushing
the power button. Pull the white bar back down to close it. Do not drive with the vent open. MP32
GFCI Electric Socket
Hubble GFCI Reciptical in .pdf
Article Hubbell’s GFCI receptacles meet new requirements, November 20, 2015
A receptacle GFCI is different from conventional ground receptacles. In the event of a fault, a GFCI will trip and quickly stop
the flow of electricity to prevent serious injury.
Cargo Carrying Capacity
GET See the information labels attached to the driver door post, and the inside of the lower galley cabinet door. MP73
Your vehicle should be reasonably level to allow normal operation of the system.MP44
How to we get a copy of the video and the 360 view of the 2015 model when the new model starts?
Is there anything like the Alde Heating System that is an add on?
Is there a way to electrically heat the water?
? The generator cannot run all the appliances at the same time.MP6
? The gasoline powered generator provides up to 2800 watts of power, enough to run all your appliances.MP62
